Exploring the 3740F Series Connectors
29 May,2025
Product Introduction:

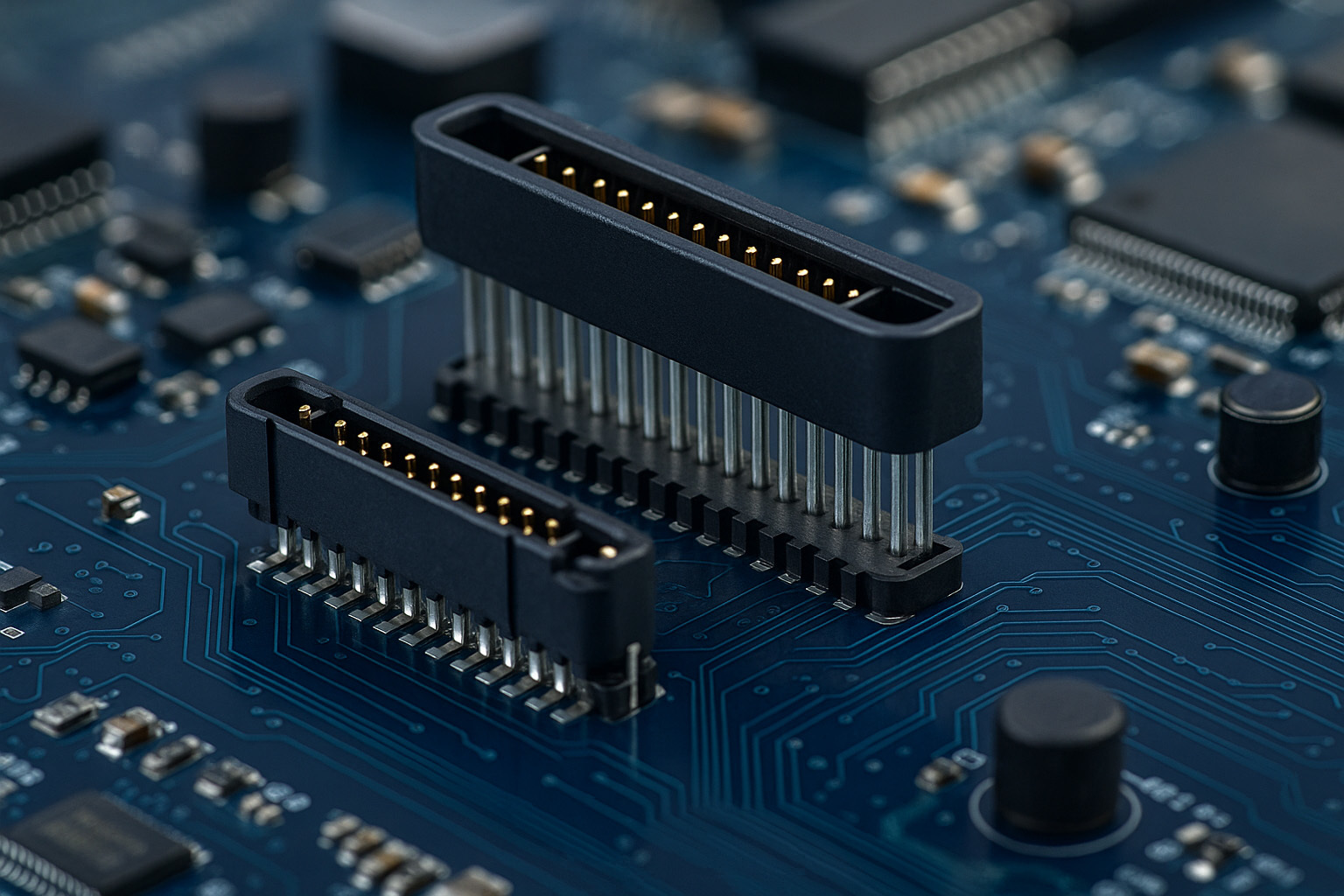

The 3740F Series 2.54mm F-type high-current elevated board-to-board connector is an optimized interconnect solution designed for high current applications and compact space adaptation. Featuring a standard 2.54mm pitch and elevated structure, this connector enhances heat dissipation and mechanical reliability. It is widely used in LED displays, communication equipment, automotive electronics, and consumer electronics.
Product Features:
1. Enhanced Heat Dissipation
The elevated design increases heat dissipation surface area, preventing performance degradation under high temperatures.
2. Space Optimization
Designed to accommodate tight PCB spacing in compact devices and support stacked structures.
3. Mechanical Stability
Improved insertion/extraction uniformity reduces vibration-related failures and ensures stable connections.
4.High-Quality Contact Material
Phosphor bronze base with gold-over-nickel plating delivers excellent conductivity and corrosion resistance.
Electrical Specifications:
Rated Current: 15A AC/DC
Withstanding Voltage: 500V AC/DC
Operating Temp: -40°C ~ +105°C
Contact Resistance: 20mΩ
Insulation Resistance: 1000MΩ
Applications:
1.LED Display Modules
2.Communication Devices
3.Consumer Electronics
4.Automotive Electronics
