DC3430XXXXXXBXX

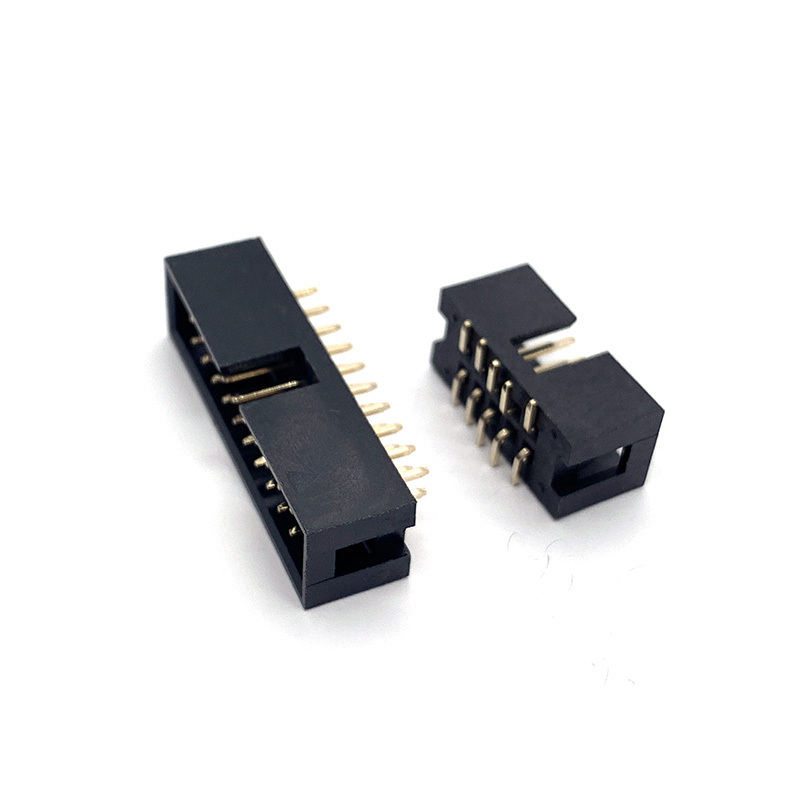

DC3430 Series – 1.27mm Pitch Shrouded Box Header Connectors
Datasheets Download
Message Inquiry
High-Reliability Connectors for Compact, High-Density PCB Designs
The DC3430 Series comprises 1.27mm pitch shrouded box header connectors for board-to-cable and board-to-board interconnect solutions. With multiple orientations—surface mount (SMT type), straight (S type), and right-angle (R type)—this series offers flexible design options for a wide range of electronic applications.
🔧 Product Features
Pitch: 1.27mm
Mounting Style: SMT (Surface Mount Technology)
Available Orientations:
Surface Mount (SMT Type) – DC3430XXMXXXBXX
Straight 180° (S Type) – DC3430XXSXXXBX1
Right Angle 90° (R Type) – DC3430XXRXXXBX1
Housing Height: 4.9mm
Number of Positions: 6 ~ 100 pins
Polarization Key: Ensures secure mating and prevents mismatching
Dual-Row Design: Supports stable IDC or ribbon cable mating
RoHS & REACH Compliant
⚡ Electrical Specifications
Rated Current: 1.0A
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 1000MΩ
Withstanding Voltage: 500V AC/DC
🧪 Materials & Durability
Housing: High-temp PA6T (UL94V-0 flame retardant)
Contacts: Precision brass with Au or Sn over Ni plating
Operating Temperature: -40°C to +105°C
Soldering Resistance:
230°C for 30–60 seconds
260°C for 10 seconds
📦 Packaging Options
1. Tube / Tube + Cap
2. Tray
3. Reel + Cap(for SMT automatic assembly)
🛠️ Customization Available
Plating Options: Gold Flash, 3μ", 5μ", 10μ", 15μ", 30μ", or Tin
Housing Material: PA6T
Color Options: Black (standard), Grey (optional)
Post: With or Without
Custom Pin Counts: Available upon request
💼 Typical Applications
1. Consumer Electronics
2. Industrial Automation Systems
3. Communication Devices
4. Instrumentation & Control
5. Embedded Systems
6. Medical Electronics
🤝 Why Choose Us?
We are a connector solution provider with over 10 years of experience serving global OEM and ODM customers. Our factory supports fast sampling, high-volume production, and full customization for global projects.
